Descriere
DESCHIDE – FISA TEHNICA
DESCHIDE – MANUAL DE UTILIZARE

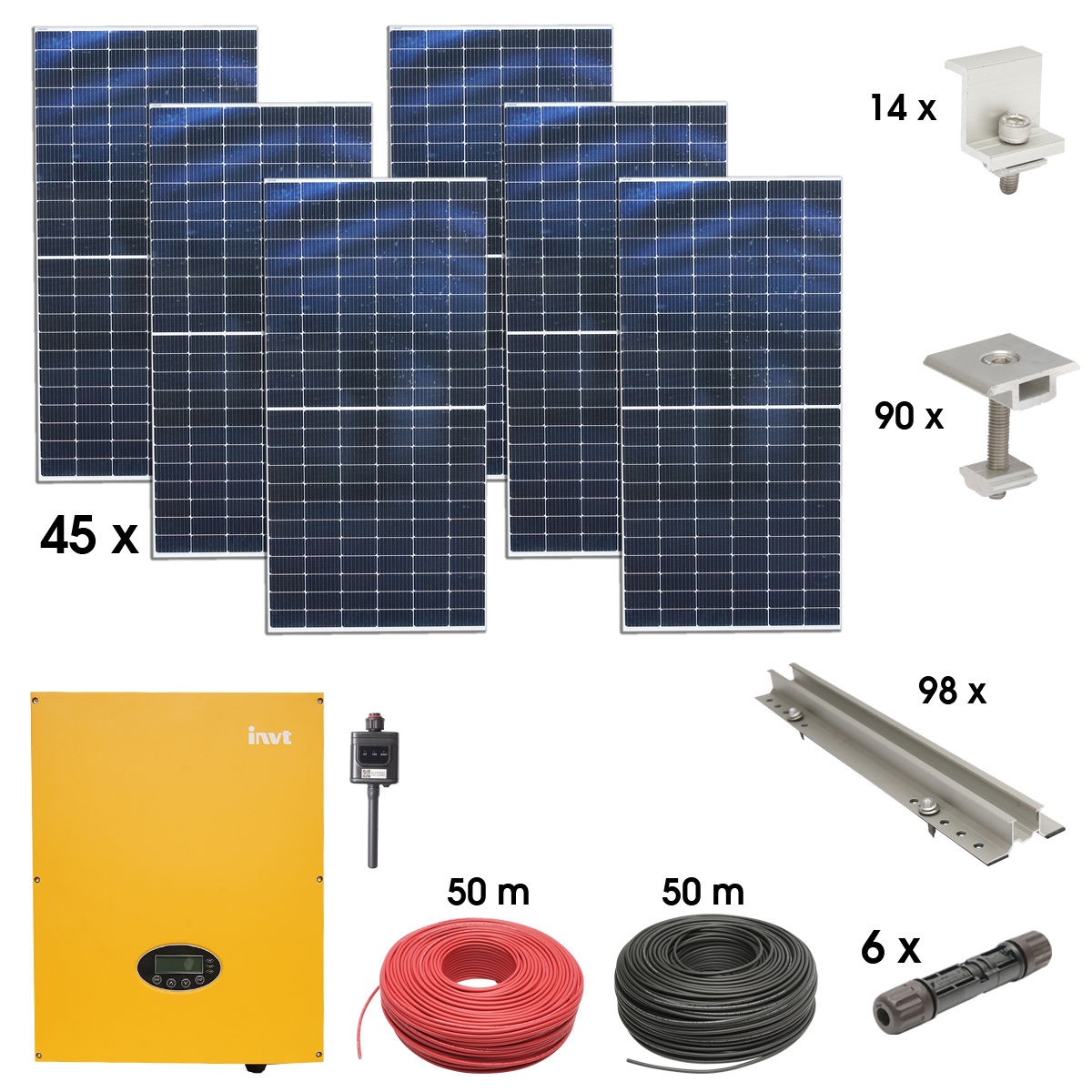

– 1 BUC X Invertor solar trifazic Hybrid ON-GRID 20KW/400V dual MPPT prosumator BG20KTR INVT
| Max. DC power | 20.800W |
| Max. DC voltage | 1.000V |
| Min. work voltage | 280V |
| PV voltage range | 450V-800V |
| MPPT work voltage range | 280V-800/610V |
| Rated AC output power | 20.000W |
| Max. output curret | 32A |
| Dimensiuni | 665 x 850 x 421 mm |
| Greutate | 62 kg |
– 45 BUC X Panou solar 450W monocristalin fotovoltaic 41.5V 2108x1048x35mmBreckner Germany
| Putere maxima panou | 450 W |
| Intensitate maxima panou | 10.85 A |
| Tensiune maxima panou | 41.5 V |
| Scurt circuit | 11.6 A |
| Tensiune circuit deschis | DC 1500 V |
| Dimensiune | 2108 x 1048 x 35 mm |
| Factor protectie | Ip 68 |
| Greutate | 23.5 Kg |
– 98 BUC X Sina prindere panou solar aluminiu 385 x 26 mm Breckner Germany
– 14 BUC X Clema capat 35 mm Breckner Germany
– 90 BUC X Clema mijloc 30-40 mm Breckner Germany
– 50 Metri cablu pentru panou solar rosu 1 X 6 mm H1Z2Z2-K Breckner Germany
– 50 Metri cablu pentru panou solar negru 1 X 6 mm H1Z2Z2-K Breckner Germany
– 6 X Seturi conectori panouri solare MC4 Breckner Germany
